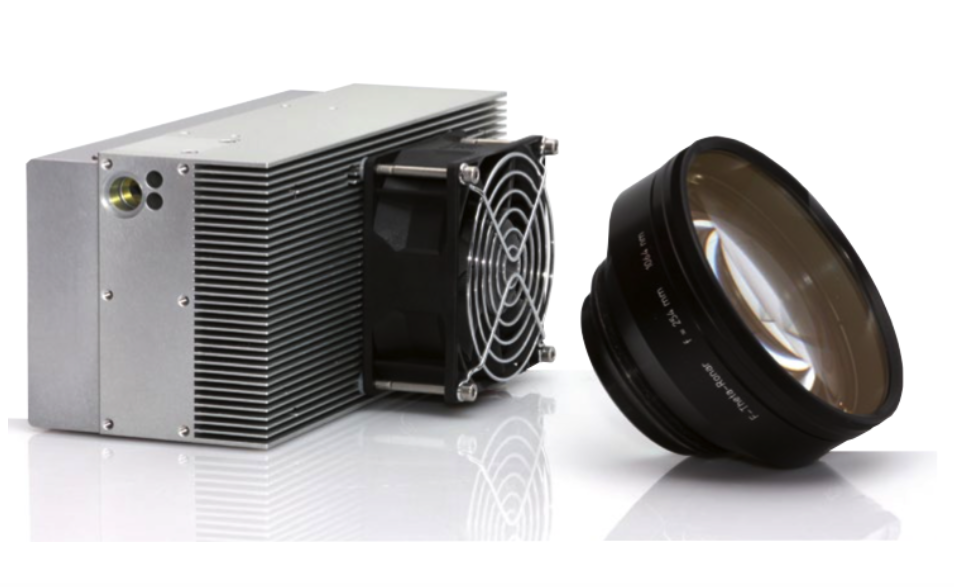

DPSS

1064 nm

532 nm

Available models /Max Average Output power

6W

10W

20W

30W

40W

3W

5W

10W

Q-Switch Repetition Rate

10 to 100 kHz (option: single shot to 200 kHz)

CW Operating Mode

YES

NO

 Pulsewidth

6 to 80 ns

Beam Diameter

< 8 mm (option: customized internal or external BEX)

Cooling

Air-cooled with thermostatic fan (option: water cooling, contact cooling)

Operating temperature

15 to 40 °C

15 to 35 °C

DC Voltage IN

 24 V

Mechanical dimensions

 23 x 10 x 9 cm (9 x 4 x 4 in ) 3 3
